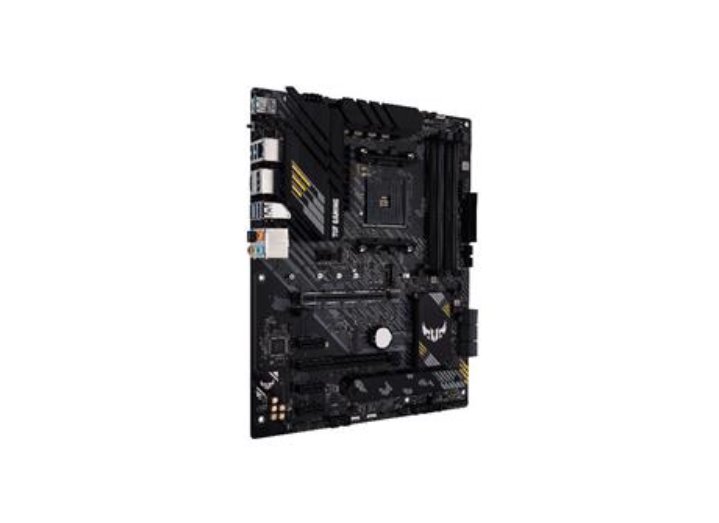

ASUS TUF GAMING B550-PLUS

Chipset:  AMD B550

Rozměrový formát:  ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory:  AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Patice procesoru:  AM4

Pozice na paměti:  4x DDR4 DIMM
Podpora pro paměti:
•3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
•Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti:  128 GB
Podpora pro paměti typu:  DDR4
•Dual Channel Memory Architecture
•ECC Memory (ECC mode) support varies by CPU.

Grafická karta:
•Integrated Graphics Processor (na základě procesoru)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:
•Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:
•Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)

Rozšiřující sloty:
•1x PCIe 4.0 x16 (x16 mode)
•1x PCIe 3.0 x16 (x4 mode)
•3x PCIe 3.0 x1

RAID řadič:  0, 1, 10

SATA:
•6x SATA 6Gb/s

M.2:
•1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
•1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:
•zadní USB porty ( celkem 8 )
•2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
•4x USB 3.2 Gen 1 port(s)( x Type-A)
•2x USB 2.0 port(s)( x Type-A)
•přední USB porty ( celkem 6 )
•2x USB 3.2 Gen 1 port(s)(2 x Type-A)
•4x USB 2.0 port(s)(4 x Type-A)

Interní porty:
•1x CPU Fan connector(s)
•1x CPU OPT Fan connector(s)
•3x Chassis Fan connector(s)
•1x AIO_PUMP connector
•2x Aura RGB Strip Headers
•1x Addressable Gen 2 header(s)
•1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
•2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
•1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
•1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
•1x M.2 with E key for Wi-Fi module
•1x SPI TPM header
•6x SATA 6Gb/s connector(s)
•1x 24-pin EATX Power connector(s)
•1x 8-pin EATX 12V Power connectors
•1x Front panel audio connector(s) (AAFP)
•1x Thermal sensor connector(s)
•1x Clear CMOS jumper(s)
•1x System panel connector
•1x COM port header

Externí porty:
•1x DisplayPort
•1x HDMI
•1x LAN (2.5G) port(s)
•2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
•4x USB 3.2 Gen 1 (blue) Type-A
•2x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
•1x Optical S/PDIF out
•5x Audio jack(s)
•1x BIOS FlashBack™ Button(s)

Obsah balení:
•User's manual
•I/O Shield
•2x SATA 6Gb/s cable(s)
•1x Supporting DVD
•1x TUF Gaming Sticker
•1x TUF Certification card(s)
•1x M.2 SSD screw package(s)
•1x M.2 Rubber Package(s)
