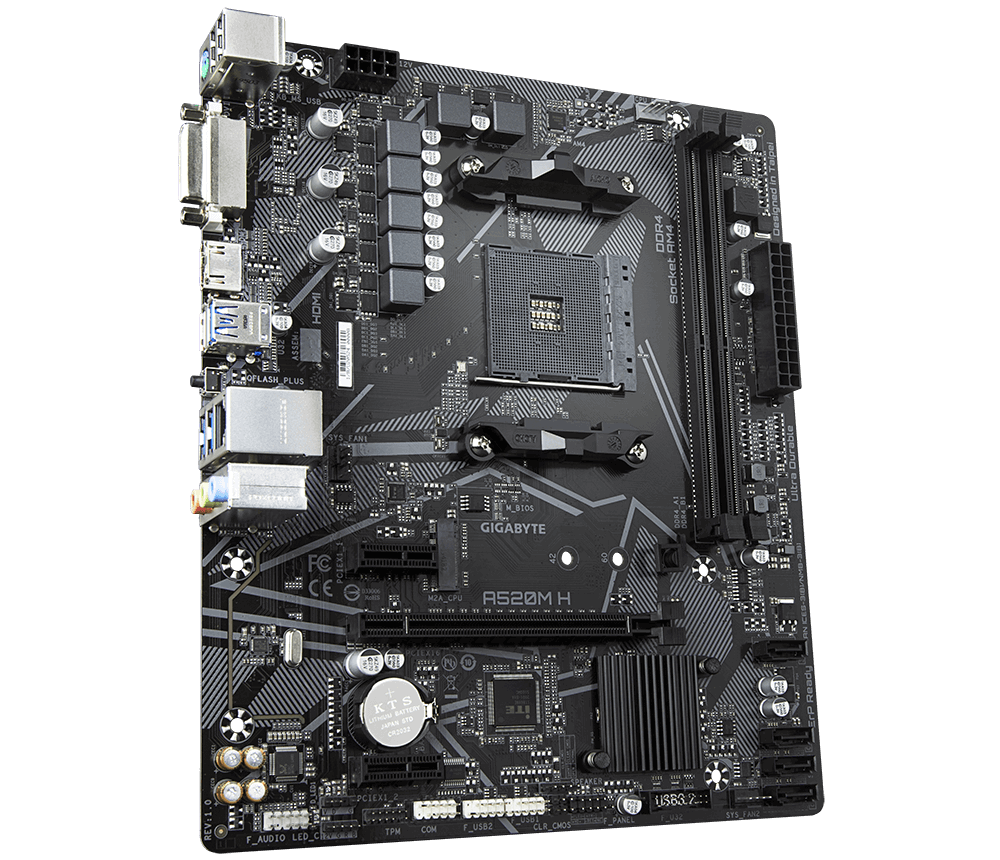

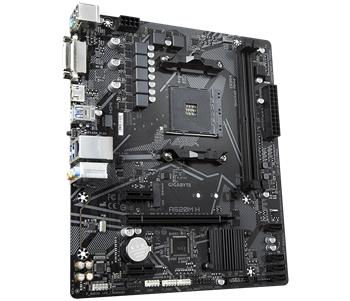

    GIGABYTE A520M H (rev. 1.0)

    GIGABYTE A520M H (rev. 1.0)

    Producer
    GigaByte
    Code
     MBGB0467
    Part No.
    A520M H
    Your price exc. VAT
    51.93 EUR
    Recycle fee
    0.06 EUR , VAT:  21%  (Komponenty a příslušenství nezaložené na mechanick)
    Your price  with RF*
    51.93 EUR
    VAT
    21%
    Your price inc. VAT
    62.84 EUR
    Price guarantee
    Find better price on net?  Inform us!
    Warranty
    36 Month
    Prodejna s DPH
    64.51  EUR

      Product details

      Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
      Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
      4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
      Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
      GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
      RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
      Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
      Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
      Anti-Sulfur Resistors Design

      CPU
      AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
      (Please refer "CPU Support List" for more information.)
      Chipset
      AMD A520
      Memory
      2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
      3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      Dual channel memory architecture
      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
      Onboard Graphics
      Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
      1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
      1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
      Maximum shared memory of 16 GB
      Audio
      Realtek® ALC887 codec
      High Definition Audio
      2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
      LAN
      Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
      Expansion Slots
      CPU:
      1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
      Chipset:
      2 x PCI Express x1 slots, supporting PCIe 3.0
      Storage Interface
      CPU:
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
      Chipset:
      4 x SATA 6Gb/s connectors
      Support for RAID 0, RAID 1, and RAID 10
      USB
      CPU:
      4 x USB 3.2 Gen 1 ports on the back panel
      Chipset:
      2 x USB 3.2 Gen 1 ports available through the internal USB header
      6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      Internal I/O Connectors
      1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x CPU fan header
      2 x system fan headers
      1 x addressable LED strip header
      1 x RGB LED strip header
      1 x M.2 Socket 3 connector
      4 x SATA 6Gb/s connectors
      1 x front panel header
      1 x front panel audio header
      1 x speaker header
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers
      1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      1 x serial port header
      1 x chassis intrusion header
      1 x Clear CMOS jumper
      Back Panel Connectors
      1 x PS/2 keyboard/mouse port
      1 x DVI-D port
      1 x HDMI port
      4 x USB 3.2 Gen 1 ports
      2 x USB 2.0/1.1 ports
      1 x Q-Flash Plus button
      1 x RJ-45 port
      3 x audio jacks
      I/O Controller
      iTE® I/O Controller Chip
      H/W Monitoring
      Voltage detection
      Temperature detection
      Fan speed detection
      Overheating warning
      Fan fail warning
      Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
      BIOS
      1 x 128 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
      Unique Features
      Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
      Support for Q-Flash Plus
      Support for Q-Flash
      Support for Xpress Install
      Bundled Software
      Norton® Internet Security (OEM version)
      Realtek® 8118 Gaming LAN Bandwidth Control Utility
      Operating System
      Support for Windows 10 64-bit
      Form Factor
      Micro ATX Form Factor; 24.4cm x 20.5cm
