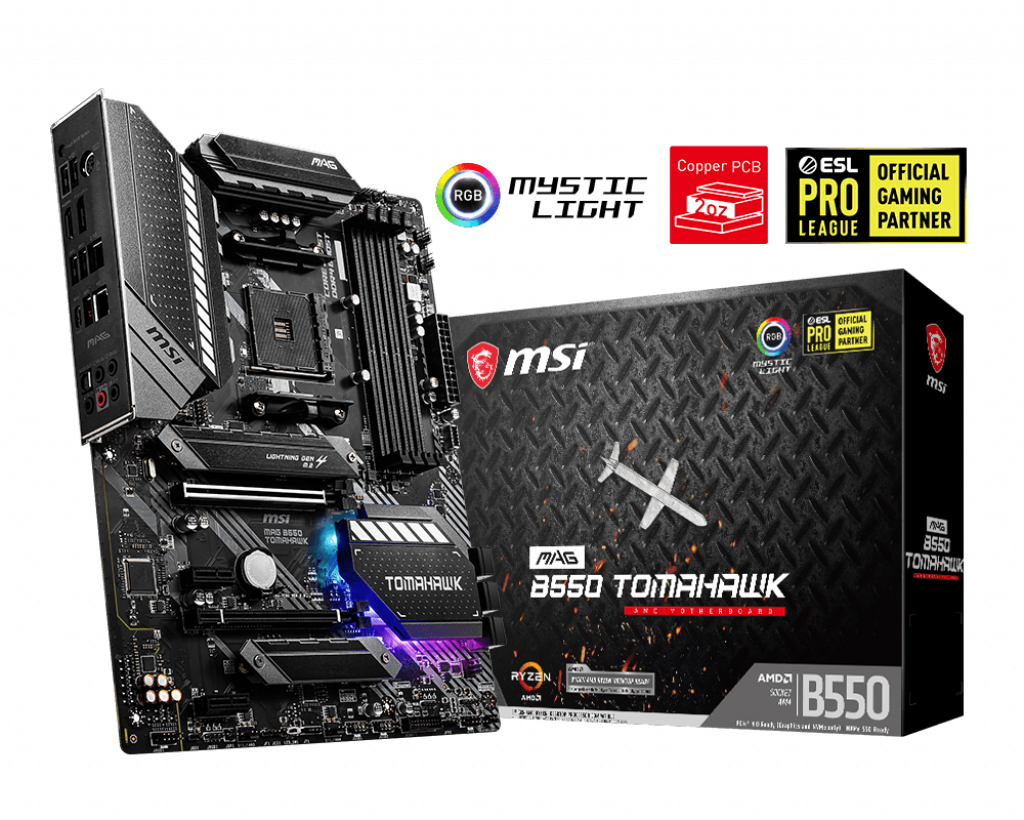

MSI MAG B550 TOMAHAWK

Chipset:  AMD B550

Rozměrový formát:  Formát ATX (305 mm x 244 mm)
Podpora pro procesory:  3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru:  AM4

Pozice na paměti:  4x DDR4
Podpora pro paměti:
•Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
•Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE

Max.velikost operační paměti:  128 GB
Podpora pro paměti typu:  DDR4
•Dual channel memory architecture
•Supports non-ECC UDIMM memory
•Supports ECC UDIMM memory (non-ECC mode)
•Supports un-buffered memory

Grafická karta:  na základě procesoru
•1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
•1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Multi GPU:
•Supports 2-Way AMD CrossFire™ Technology

Zvuková karta:
•Realtek® ALC1200 Codec

Síťová karta:
•1x Realtek® RTL8125B 2.5Gbps LAN controller
•1x Realtek® RTL8111H 1Gbps LAN controller

RAID řadič:
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozšiřující sloty:
•1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
•1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
•2x PCIe 3.0 x1 slots

SATA:
•6x SATA 6Gb/s ports

M.2:
•2x M.2 slots (Key M)

USB:
•zadní USB porty ( celkem 6 )
•2x USB 2.0 ports
•1x USB 3.2 Gen 2 10Gbps Type-C port
•1x USB 3.2 Gen 2 10Gbps port
•2x USB 3.2 Gen 1 5Gbps Type-A ports
•přední USB porty ( celkem 7 )
•1x USB 3.2 Gen 1 5Gbps Type-C port
•2x USB 3.2 Gen 1 5Gbps ports
•4x USB 2.0 ports

Interní porty:
•1x 24-pin ATX main power connector
•1x 8-pin ATX 12V power connector
•6x SATA 6Gb/s connectors
•2x M.2 slots (M-Key)
•1x USB 3.2 Gen 1 5Gbps Type-C port
•1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
•2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
•1x 4-pin CPU fan connector
•1x 4-pin water-pump fan connector
•6x 4-pin system fan connectors
•1x Front panel audio connector
•2x System panel connectors
•1x Chassis Intrusion connector
•2x 4-pin RGB LED connectors
•2x 3-pin RAINBOW LED connectors
•1x TPM module connector
•1x Clear CMOS jumper

Externí porty:
•PS/2 Combo Port
•DisplayPort
•1x 2.5G LAN Port
•1x 1G LAN Port
•HD Audio Connectors
•Flash BIOS Button
•2x USB 2.0 Port
•HDMI Port
•2x USB 3.2 Gen 1 5Gbps (Type-A)
•1x USB 3.2 Gen 2 10Gbps (Type-A)
•1x USB 3.2 Gen 2 10Gbps (Type-C)
•Optical S/PDIF OUT
