System x Storage TS2900 Tape Autoloader w/LT06 HH SAS

http://www.redbooks.ibm.com/abstracts/tips1220.html?Open

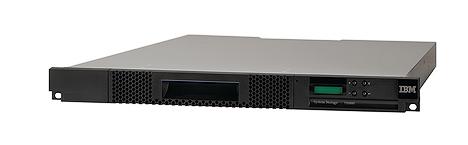

The TS2900 has a nine-data-slot cartridge capacity for a total storage capacity of up to 56.25 TB with 2:5:1 compression, and also a single I/O station to provide undisturbed library operation when extracting or inserting data cartridges. The library uses one IBM LTO Ultrium Half-High tape drive (in these TS2900 models, an LTO Ultrium 6 S6H/S6R, LTO Ultrium 5 S5H/S5H, or an LTO Ultrium 4 S4H/S4R). The TS2900 is shipped as a rack mount unit, with the option of a desktop conversion kit. The TS2900 includes, as standard, a bar-code reader, which supports the operations in sequential or random access mode. Remote administration and management capabilities are possible through the web interface that is also included as standard.



The group box contains the following items:
Tape autoloader with Ultrium 4 Half-High (Model S4H/S4R) or Ultrium 5 Half-High tape drive (Model S5H/S5R) or Ultrium 6 Half-High tape drive (Model S6H/S6R)
Rack mount kit with device to PDU line cord or Deskside Cover (one must be selected)
SAS wrap tool
Drive includes two Mini-SAS (SFF-8088) connectors
One removable nine-cartridge magazine
Power cord (must be selected)
One IBM Ultrium Cleaning Cartridge (universal)
IBM System Storage TS2900 Tape Autoloader Setup, Operator, and Service Guide, GC27-2212-02
IBM System Storage TS2900 Tape Autoloader Installation Quick Reference Guide, GA76-0423-00
Quality hotline card
Device Driver readme sheet
IBM System Storage Translated Safety Notices
Multi-language Statement of Limited Warranty
Statement of Limited Warranty Pointer Sheet
Misc documents CD
